Worker Input Configuration (Input Schema)

This document explains how developers should configure the input_schema.json file. This file determines the input form layout presented to users in the web interface of an automation Worker.

🛠️ Input Schema User Guide

input_schema.json is the “face” of your script. By editing this file, you can control which parameters users must fill in before launching the script, such as URLs, keywords, dates, and more, as well as how those fields are displayed, such as dropdowns, checkboxes, and text inputs.

1. Overall Structure

A standard configuration file consists of the following three parts:

description: Introduces the script’s purpose and usage to the user.
b: The concurrency key field that determines how the script splits tasks.
properties: The list of specific parameter settings.

Core Example

{
    "description": "With our Instagram Reel information Worker tool, after a successful scrape, you can extract the Reel author's username, Reel caption, hashtags used in the post, number of comments on the Reel, Reel publish date, likes count, views count, play count, popular comments, unique post identifier, URL of the Reel's display image or video thumbnail, product type, Reel duration, video URL, post audio link, number of posts on the profile, number of followers on the profile, profile URL, whether the account is a paid partner, and other relevant information. Currently, the tool can scrape via Instagram username, URL, and other methods, and the scrape results can be downloaded in various structured formats.",
    "b": "startUrl",
    "properties": [
        {
            "title": "URL",
            "name": "startUrl",
            "type": "array",
            "editor": "requestList",
            "description": "This parameter is used to specify the Instagram access URL to be fetched.",
            "default": [
                {
                    "url": "https://www.instagram.com/reel/C5Rdyj_q7YN/"
                },
                {
                    "url": "https://www.instagram.com/reel/C85BZjeSHuO"
                }
            ],
            "required": true
        }
    ]
}

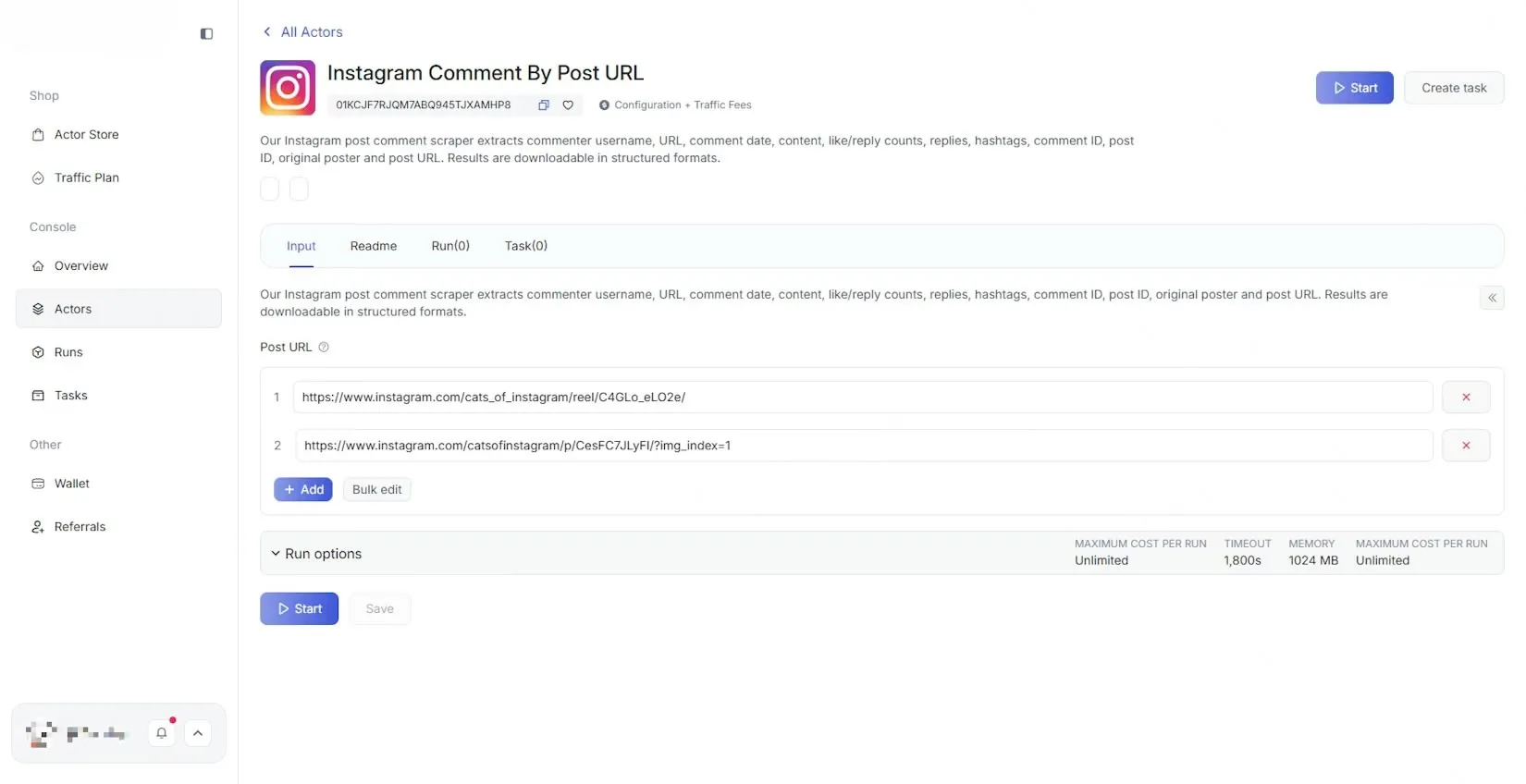

Output Example: Input

2. Key Root Fields

Field Name	Required	Description
description	No	Tool summary. Displayed at the top of the page. You can use it to describe the script’s purpose, notes, and more. There is no length limit.
b	Yes	Task splitting key. This must match the `name` of one element inside `properties`. The script uses this field for concurrent processing, for example, splitting tasks by the number of URLs.
properties	Yes	Parameter configuration array. This contains all input items, and each element represents one input field or selector on the page.

3. Property Details Inside `properties`

Each input item can contain the following settings:

title: The label displayed on the page, for example, “Search Keywords”.
name: The internal ID used by the program. It must be unique and cannot contain Chinese characters.
type:
- string: text
- integer: number
- boolean: switch (true / false)
- array: list / multi-select
- object: object
editor: Determines which form control is used to render the input item in the web interface. See the table below.
description: Helper text shown below the input field to guide the user.
default: The initial displayed value or option.
required: If set to true, the script cannot be started unless the user fills in this field.

4. Editor Type Guide

You can choose different editor types based on your needs to improve the user experience.

1. Basic Text and Number Inputs

Type Value	UI Form	Common Use Cases
input	Single-line input	Short text, keywords, account names
textarea	Multi-line textbox	Notes, long text descriptions
number	Number input	Limits, page numbers, wait seconds

2. Selectors

Type Value	UI Form	Example Use Cases
select	Dropdown	Gender, language, region
radio	Radio group	One-of-two or one-of-three choices
checkbox	Checkbox set	Select multiple tags of interest
switch	Toggle switch	Enable or disable an option

3. Date and Special List Inputs

Type Value	UI Form	Common Use Cases
datepicker	Date picker	Filter by a specific publish date
requestList	URL list	Batch input for page links to scrape, with Excel-style import support
requestListSource	URL request source	Allows additional custom parameters
stringList	String list	Batch input for multiple keywords

5. Common Component Examples

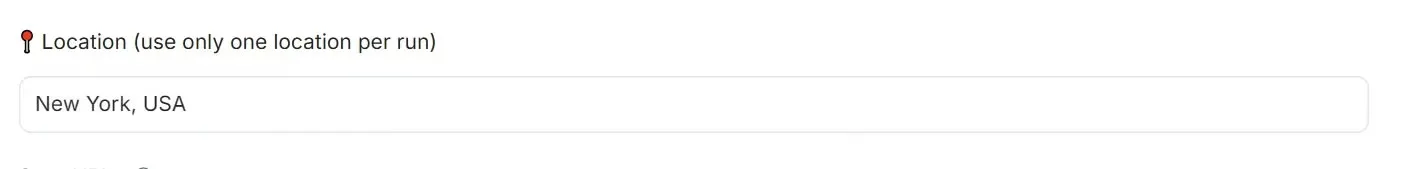

1. Single-line Input (`input`)

{
    "title": "📍 Location (use only one location per run)",
    "name": "location",
    "type": "string",
    "editor": "input",
    "default": "New York, USA"
}

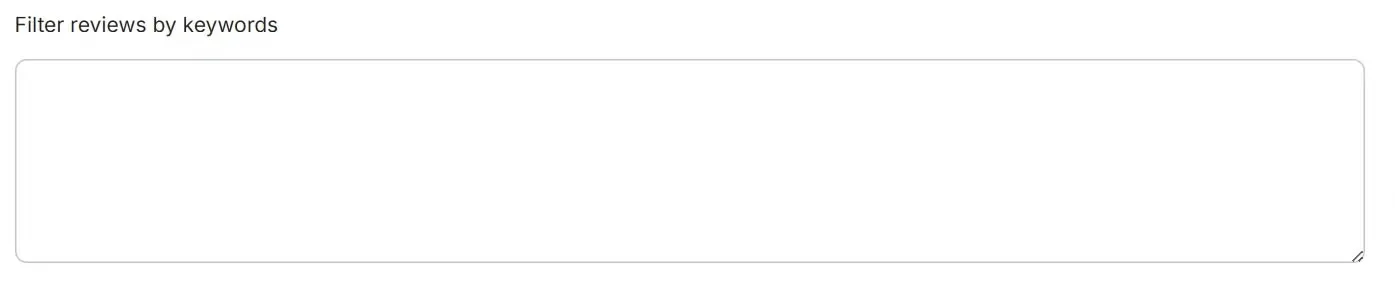

2. Multi-line Textarea (`textarea`)

{
    "title": "Filter reviews by keywords",
    "name": "keywords",
    "type": "string",
    "editor": "textarea"
}

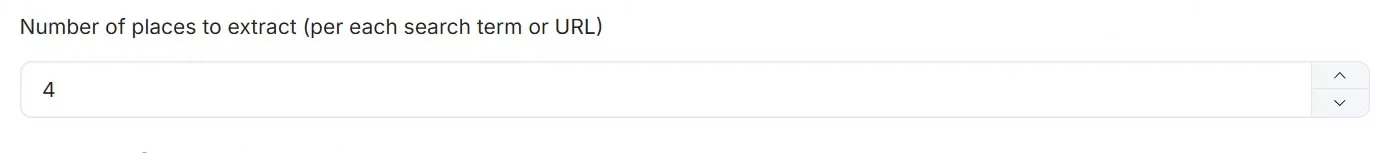

3. Number Input (`number`)

{
    "title": "Number of places to extract (per each search term or URL)",
    "name": "maxPlacesPerSearch",
    "type": "integer",
    "editor": "number",
    "default": 4
}

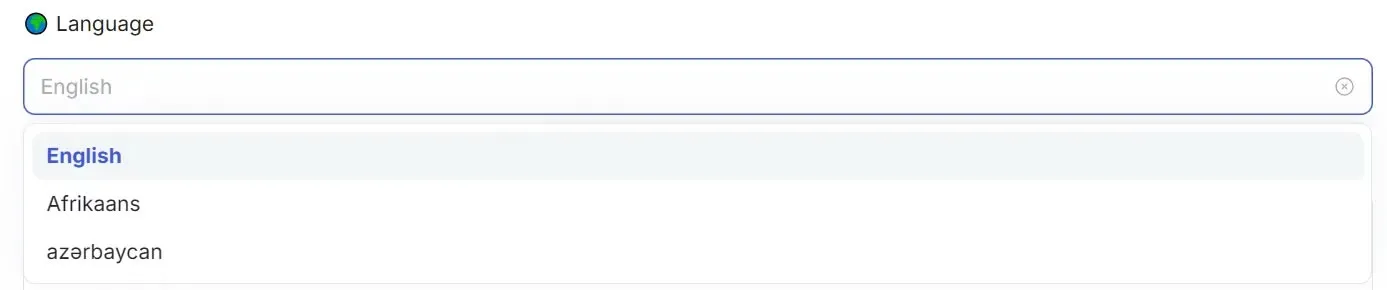

4. Dropdown (`select`)

{
    "title": "🌍 Language",
    "name": "language",
    "type": "string",
    "editor": "select",
    "options": [
        {
            "label": "English",
            "value": "en"
        },
        {
            "label": "Afrikaans",
            "value": "af"
        },
        {
            "label": "azərbaycan",
            "value": "az"
        }
    ],
    "default": "en"
}

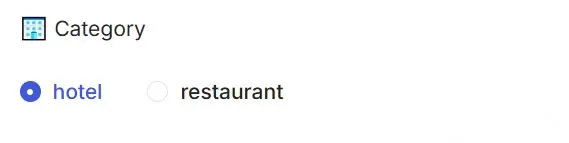

5. Radio Group (`radio`)

{
    "title": "🏢 Category",
    "name": "radio",
    "type": "integer",
    "editor": "radioGroup",
    "options": [
        {
            "label": "hotel",
            "value": 1
        },
        {
            "label": "restaurant",
            "value": 2
        }
    ],
    "default": 1
}

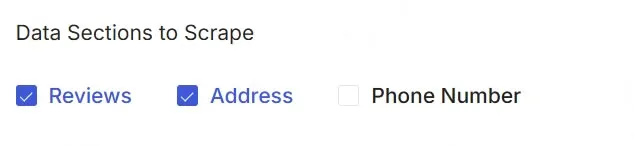

6. Checkbox Group (`checkbox`)

{
    "title": "Data Sections to Scrape",
    "name": "data_sections",
    "type": "array",
    "editor": "checkboxGroup",
    "options": [
        {
            "label": "Reviews",
            "value": "reviews"
        },
        {
            "label": "Address",
            "value": "address"
        },
        {
            "label": "Phone Number",
            "value": "phone_number"
        }
    ],
    "default": ["reviews", "address"]
}

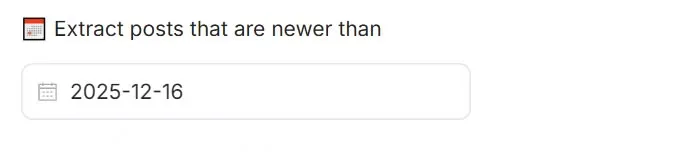

7. Date Picker (`datepicker`)

{
    "title": "📅 Extract posts that are newer than",
    "name": "date",
    "type": "string",
    "editor": "datepicker",
    "format": "DD/MM/YYYY", // Controls the display format shown in the input field (optional)
    "valueFormat": "DD/MM/YYYY" // Controls the format of the bound value (optional)
}

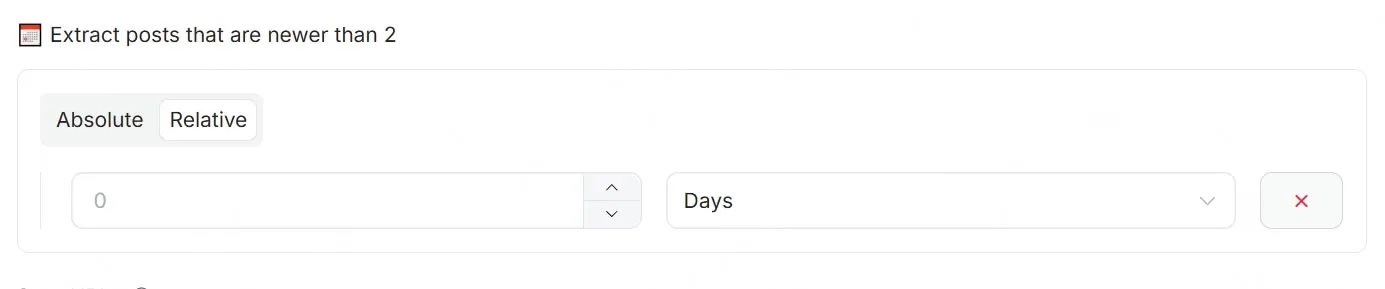

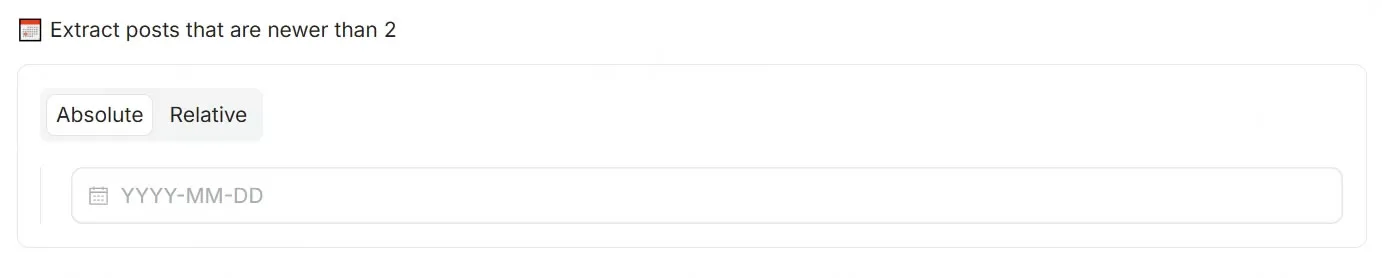

// editor:"datepicker"
// dateType: 'absoluteOrRelative'
{
    "title": "📅 Extract posts that are newer than",
    "name": "date",
    "type": "string",
    "editor": "datepicker",
    "dateType": "absoluteOrRelative"
}

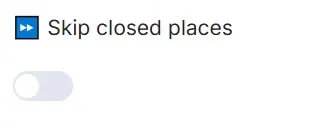

8. Toggle Switch (`switch`)

{
    "title": "⏩ Skip closed places",
    "name": "skipClosed",
    "type": "boolean",
    "editor": "checkbox"
}

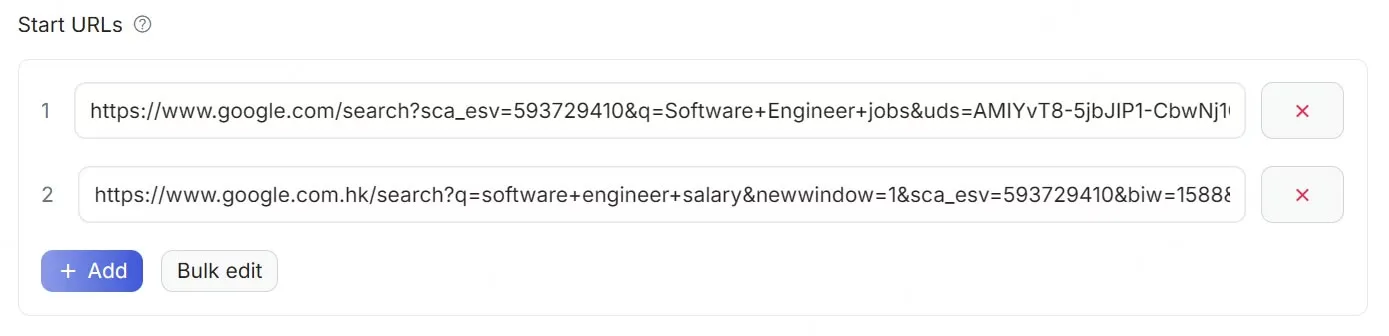

9. URL List (`requestList`)

{
    "name": "startURLs",
    "type": "array",
    "title": "Start URLs",
    "editor": "requestList",
    "default": [
        {
            "url": "https://www.google.com/search?sca_esv=593729410&q=Software+Engineer+jobs&uds=AMIYvT8-5jbJIP1-CbwNj1OVjAm_ezkS5e9c6xL1Cc4ifVo4bFIMuuQemtnb3giV7cKava9luZMDXVTS5p4powtoyb0ACtDGDu9unNkXZkFxC0i7ZSwrZd_aHgim6pFgOWgs0dte0pnb&sa=X&ictx=0&biw=1621&bih=648&dpr=2&ibp=htl;jobs&ved=2ahUKEwjt-4-Y6KyDAxUog4kEHSJ8DjQQudcGKAF6BAgRECo"
        },
        {
            "url": "https://www.google.com.hk/search?q=software+engineer+salary&newwindow=1&sca_esv=593729410&biw=1588&bih=1273&ei=vEtOadCxI-3AkPIP952z0Qc&oq=Software+Engineer&gs_lp=Egxnd3Mtd2l6LXNlcnAiEVNvZnR3YXJlIEVuZ2luZWVyKgIIAjIKEAAYgAQYQxiKBTIFEAAYgAQyBRAAGIAEMgUQABiABDIFEAAYgAQyBRAAGIAEMgUQABiABDIFEAAYgAQyBRAAGIAEMgUQABiABEj2yQFQ0TFYlbEBcAR4AZABBJgBkwOgAbUXqgEHMi0zLjQuMrgBA8gBAPgBAZgCBqACiAWoAgPCAgoQABiwAxjWBBhHwgIgEAAYgAQYtAIY1AMY5QIY5wYYtwMYigUY6gIYigPYAQGYAwTxBcFiu8bFvIEOiAYBkAYKugYECAEYB5IHCTQuMC4xLjAuMaAHvy6yBwcyLTEuMC4xuAf1BMIHAzItNsgHGIAIAA&sclient=gws-wiz-serp"
        }
    ],
    "required": true,
    "description": "The URLs of the website to scrape"
}

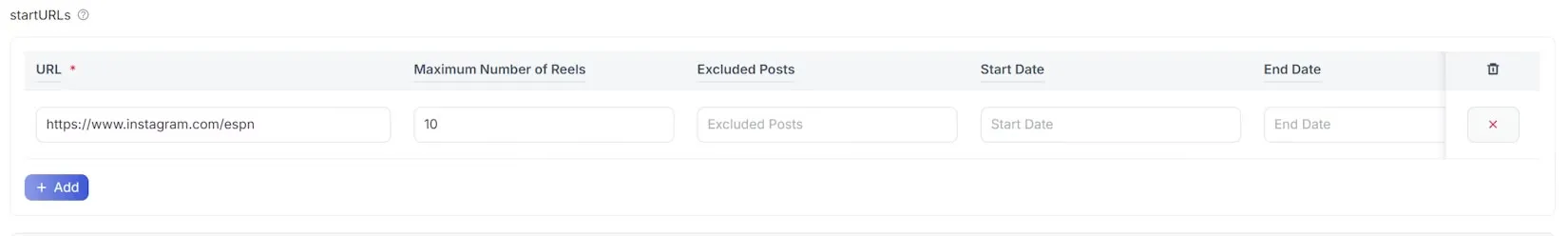

10. URL Request Source (`requestListSource`)

{
    "title": "startURLs",
    "name": "url",
    "type": "array",
    "editor": "requestListSource",
    "default": [
        {
            "url": "https://www.instagram.com/espn",
            "end_date": "",
            "start_date": "",
            "num_of_posts": "10",
            "posts_to_not_include": ""
        }
    ],
    "param_list": [
        {
            "param": "url",
            "title": "URL",
            "editor": "input",
            "type": "string",
            "required": true,
            "description": "This parameter is used to specify the Instagram access URL to be fetched."
        },
        {
            "param": "num_of_posts",
            "title": "Maximum Number of Reels",
            "type": "integer",
            "editor": "number",
            "description": "This parameter is used to specify the maximum number of Reels to fetch."
        },
        {
            "param": "start_date",
            "title": "Start Date",
            "type": "string",
            "editor": "datepicker",
            "format": "MM-DD-YYYY",
            "valueFormat": "MM-DD-YYYY",
            "description": "This parameter is used to specify the start time of the post, format: mm-dd-yyyy, and should be earlier than the \"end_date\"."
        },
        {
            "param": "end_date",
            "title": "End Date",
            "type": "string",
            "editor": "datepicker",
            "format": "MM-DD-YYYY",
            "valueFormat": "MM-DD-YYYY",
            "description": "This parameter is used to specify the end time of the post, format: mm-dd-yyyy, and should be later than the \"start_date\"."
        }
    ],
    "description": "The URLs of the website to scrape"
}

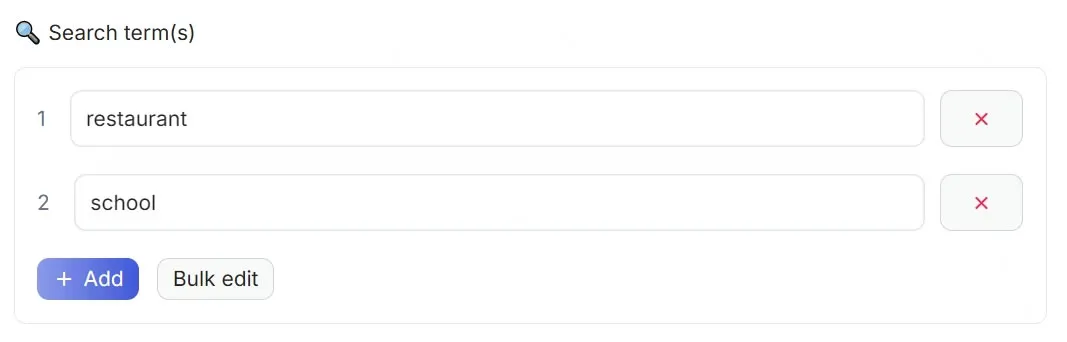

11. String List (`stringList`)

{
    "title": "🔍 Search term(s)",
    "name": "searchTerms",
    "type": "array",
    "editor": "stringList",
    "default": [
        {
            "string": "restaurant"
        },
        {
            "string": "school"
        }
    ]
}

📚 Grouped Configuration

Developers can logically group multiple configuration items by using specific fields. When there are many configuration items, grouping improves readability and maintainability, helping users locate and understand the settings more easily.

Parameter	Example Value	Type	Required	Description
sectionCaption	-	String	No	Defines the display title of a group. When this property appears in a configuration item, it is treated as the start of a new group.
sectionDescription	-	String	No	Adds extra explanation for the current group and provides more detailed context.

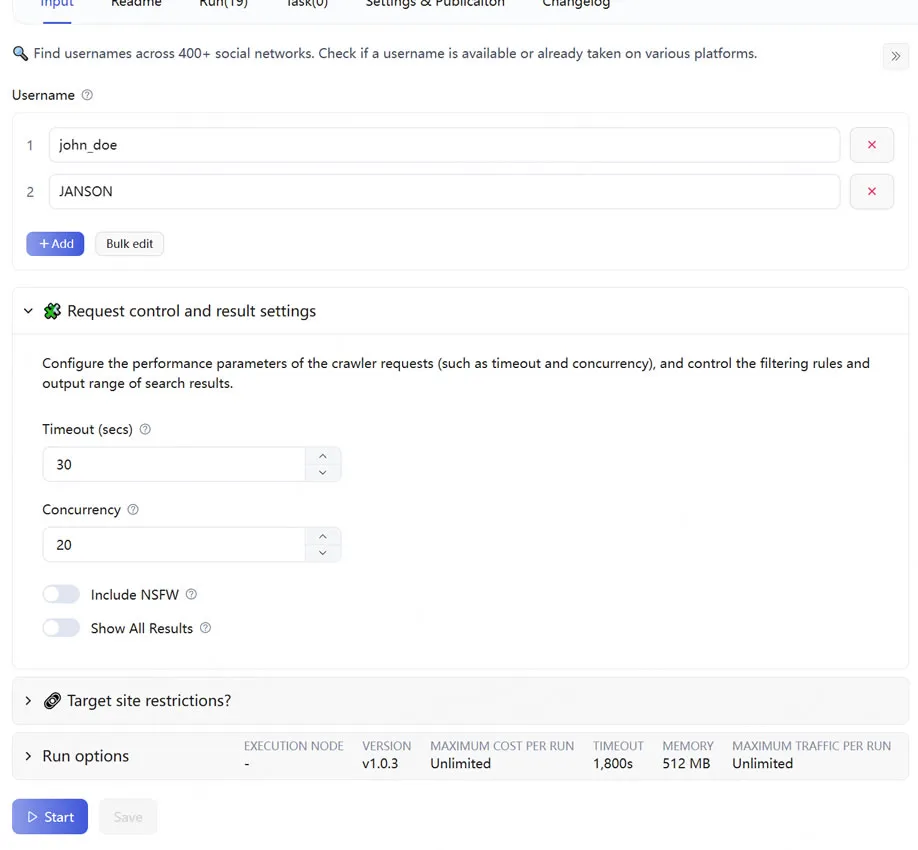

Example

{
    "description": "🔍 Find usernames across 400+ social networks. Check if a username is available or already taken on various platforms.",
    "b": "username",
    "properties": [
        {
            "title": "Username",
            "name": "username",
            "type": "array",
            "editor": "stringList",
            "description": "Username(s) to search. One per line.",
            "default": [
                {
                    "string": "john_doe"
                }
            ],
            "required": true
        },
        {
            "title": "Timeout (secs)",
            "name": "timeout",
            "type": "integer",
            "editor": "number",
            "description": "Request timeout in seconds per site.",
            "default": 30,
            "sectionCaption": "🧩 Request control and result settings",
            "sectionDescription": "Configure the performance parameters of the crawler requests (such as timeout and concurrency), and control the filtering rules and output range of search results."
        },
        {
            "title": "Concurrency",
            "name": "maxConcurrency",
            "type": "integer",
            "editor": "number",
            "description": "Maximum concurrent requests.",
            "default": 20
        },
        {
            "title": "Include NSFW",
            "name": "includeNsfw",
            "type": "boolean",
            "editor": "switch",
            "description": "Include adult content sites in search.",
            "default": false
        },
        {
            "title": "Show All Results",
            "name": "printAll",
            "type": "boolean",
            "editor": "switch",
            "description": "Show all results including not found.",
            "default": false
        },
        {
            "title": "Specific Sites",
            "name": "sites",
            "type": "array",
            "editor": "requestList",
            "description": "Only check these sites (empty = all sites).",
            "default": [],
            "sectionCaption": "🔗 Target site restrictions?",
            "sectionDescription": "Configure the specific list of websites to be checked. If the list is empty, all available sites will be checked by default."
        }
    ]
}

💡 Configuration Tips

Write clear descriptions: Make sure description is clear and accurate. This helps your script get discovered by more target users.
Set sensible defaults: A reasonable default value lets users run the script immediately and greatly lowers the barrier to entry.
Validate required fields: For parameters without which the script cannot run, such as login cookies or the main URL, be sure to set "required": true.
